The Engineering Required to Build Ancient Megaliths

Quantifying Antiquity turns published construction claims into a build program: labor, materials, tools, transport, food, water, and time.

The Great Pyramid is the first published study. The model tests that study.

What would it have taken to quarry, move, and place the stones, and keep the entire effort supplied?

The full engineering test of how the Great Pyramid is said to have been built.

Old Kingdom Egypt could not have built the Great Pyramid as claimed.

Labor and settlement, timber supply, rope production, copper supply, and granite transport each fail on their own. Fixing one does not fix the others. When every required job and support system must run together, the full construction plan fails too.

Read the papers Run the model See the findings

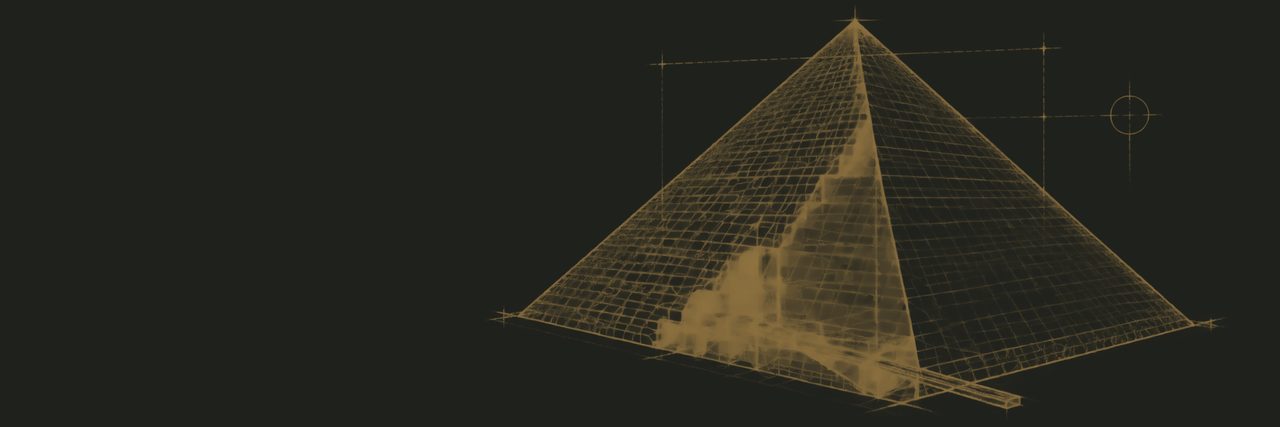

Cutaway blueprint of the Great Pyramid, its casing drawn as surveyed blocks over the internal ramp and chamber geometry.

Findings

Finding 01

Timber

The complete timber system requires approximately 4,130.5 m³ of felled timber each year and 82,609.5 m³ over twenty years. That is approximately 60.19 Snefru-ship equivalents annually and 1,203.8 over the build. Ship equivalents describe the scale of the complete timber system; they do not mean that every cubic meter is imported cedar. Even if half the timber is assumed to be native, the imported requirement is 601.9 shiploads over the build, 15.05 times the forty-ship delivery. The complete timber system is 30.09 times that comparator.

Read the white paper Test the model

The build is one program. The required operations run on one schedule against the same finite resources. Each alternative the audit tests moves the burden; none removes it.

The logic behind a closed system

Solving one task creates work somewhere else.

Every proposed solution has consequences. Leaving them out can make one operation look workable while the complete project still fails.

Ramp

Traffic Plank wear New timber Shape planks Transport Install

Moving blocks along a ramp wears out its wooden surface. Replacing that surface means felling timber, cutting and hauling planks, installing them, and supporting the crews that do it. That work continues throughout construction.

Worker

Household Settlement Food Water More carriers More demand

The workers at the pyramid were not the whole workforce. Their households needed housing, food, and water. Delivering those supplies required more workers, who also needed support.

Copper tool

Mining Smelting Smelting fuel Casting Wear Replacement

Copper tools had to be made and repeatedly replaced. That kept the mines, smelters, fuel supply, foundries, and distribution system working throughout the claimed build.

Barge

Hull timber Crew Harbor Shore lift Refloat Unload

Enough buoyancy can float a loaded beam. It does not get the beam from land onto the barge, pull the heavier barge into deep water, or unload the beam at the other end.

Test an alternative

You can change the method. You cannot delete the function.

Try a common proposed fix. Quantifying Antiquity gives it its full benefit, then counts the people, materials, equipment, time, wear, space, and support it requires.

Proposed change

Reduce the force required from each puller

What it improves

Fewer pullers at the rope

What follows

Longer rope travel
Anchors and rigging
Setup and reset time
Rope wear and replacement
A larger operating footprint

Why a fix creates new demandsThe model allows the pulling burden per person to fall. Mechanical advantage does not erase hauling. It trades force for distance, equipment, time, wear, and space.

The failures are simultaneous, not alternatives. A proposed correction must clear every failure it affects, not just one.

How to check the result

The homepage is the summary. The public research paper, technical white paper, and interactive model show the evidence, calculations, and tests behind it.

Each row shows where a claim is controlled and what the model says about it.

Area	Finding	Result	Public record
Whole modeled system	The burdens already counted exceed the modeled limits	Fails as a complete construction program	White paper Model System closure
Sustained worker mobilization	The program requires 47,342 men drawn from farming at one time, 61.6% of the modeled non-farm male labor pool, leaving 29,458 for every other non-farm function	Fails as a complete construction program	White paper Model System closure
Worker settlement	The on-site workforce is 47,316, or 11.27 times the model’s 4,200-worker settlement benchmark. This produces an implied on-site population of 281,643	Fails as a complete construction program	White paper Model Workers and settlement
Replacing the ramp’s wooden planks under the audit’s assumptions	26,743.5 m³ installed, 69,265.8 m³ felled once conversion loss is applied — 25.23× the 2,745 m³ comparator	Exceeds historical record	White paper Model Ramp and timber
Complete timber system	82,609.5 m³ felled over the build — 30.09× the comparator; 1,203.8 shipload equivalents against 601.9 literal imported shiploads	Exceeds historical record	White paper Model Ramp and timber
Rope and fiber	567.2 t of rope a year including production waste — 17.45 first-rate rigging equivalents, one every 2.98 weeks	Exceeds historical record	White paper Model Rope and fiber
Copper tools	Quarry tools require 27.54 tonnes of new copper production each year and 550.7 tonnes over twenty years. That is 7.16 times Bir Nasib’s long-run annual average and 11.01% of its estimated total output across a 1,300-year operating span. The separate shaping and setting copper diagnostic remains outside this comparison	Quantified burden	White paper Model Copper and tools
Water delivery, including laborers	3.39 million liters must be delivered every day	Counted through feedback	White paper Model Water and support
Food production and delivery	At minimum, feeding the project requires 45,282 grain farmers and 226,410 people including the farmers and their dependents. Once the food needed to support those additional farmers and families is also counted, the requirement rises to 1,603,797 people, or 100.2% of the 1.6-million population anchor	Fails as a complete construction program	White paper Model
Granite transport	Expedition and river/harbor labor integrated. Shore footprint 5.33 m² against 1.5 m² available; deck-edge movement 0.410 m at 4.10× the 0.10 m tolerance; break-even waterplane 3,200 m², a 246 m hull at the modeled 13 m beam; the 1,323 m² comparator still moves 2.42× tolerance	Capability gap	White paper Model Granite from Aswan

What comes from sources, and what is assumed

The audit begins with the dates, construction schedule, technologies, and published evidence used by the conventional account. It tests what those claims would require in the real world. Source badges show what comes from published evidence, what Quantifying Antiquity calculates, and what it assumes.

What “open” means

Some required work is not added to the headline totals yet. That does not make it unnecessary or make the construction plan easier. It means Quantifying Antiquity will not use a number until the evidence, method, and overlap with other work are clear enough to count without guessing or counting the same work twice.

How to challenge the audit

Change an input and the interactive model recalculates the whole program. A fix that helps one job can add demands elsewhere. The conclusion changes only if the entire construction plan works together.
